From custom multi-ply scratchplates and electro-acoustic assemblies to professional machine heads and vintage pickups, our turnkey supply chain supports global guitar brands, master luthiers, and aftermarket distributors with uncompromising consistency.
A guitar pickguard (scratchplate) is rarely a simple sheet of stamped plastic. In modern mass production and boutique lutherie, it serves as an electro-mechanical chassis holding potentiometers, pickup coils, selector switches, and RF grounding planes while directly dampening or influencing soundboard resonance.
Our factory uses hot-melt non-reactive thermoset films under pressure-regulated thermal platen presses to bond 3-ply, 4-ply, and 5-ply configurations (PVC, celluloid, acrylic, and vulcanized fiber). This eradicates environmental delamination, layer bubbling, and ambient humidity warping across marine export transit.
Counter-sunk screw holes, pickup aperture clearances, and perimeter bevels (standard 45° or vintage-correct 60°) are routed utilizing multi-axis diamond cutters operating at 24,000 RPM. This produces mirror-smooth edges without burrs, eliminating hand-filing bottlenecks in high-speed assembly plants.
We apply full-contact conductive aerospace-grade aluminum or continuous copper backing foils. Calibrated to continuous surface impedance values (<0.2 Ω/sq), our pickguards effectively isolate single-coil and high-gain humbucking pickup loops from 50/60Hz line cycle hum and RF interference.
Selecting the appropriate material substrate directly determines scratch resistance, chemical longevity against skin perspiration, static electricity generation, and visual depth.
| Material Category | Standard Ply Matrix | Thermal Stability | Scratch Hardness | Faraday Shielding Integration | Primary OEM Application |
|---|---|---|---|---|---|
| Modified Celluloid Nitrate | 4-Ply (Tortoise / White / Black / White) | Up to 70°C | 2H - 3H Pencil | Conductive Aluminum / Copper Foil | Vintage Reissue Electric & Acoustic Guitars |
| Extruded PVC / ABS Alloy | 3-Ply (Black / White / Black) | Up to 85°C | 3H - 4H Pencil | High-purity adhesive copper backing | High-volume standard electric & bass models |
| Optically Clear Cast Acrylic (PMMA) | Single Ply (1.5mm - 3.0mm) | Up to 95°C | 4H - 5H Pencil | Back-printed reverse art or selective shield | Custom boutique, back-painted, illuminated models |
| Anodized Aircraft Aluminum (6061-T6) | Single Sheet (1.5mm / 2.0mm) | Over 200°C | >8H Mohs Scale Equivalent | Inherent 100% full-surface EMI barrier | Stage tour instruments, hum-suppression builds |
| Engineered Phenolic / Vulcanized Fiber | Single Ply Bakelite-style (1.6mm) | Up to 130°C | 5H Pencil | Lacquer coated + localized control shielding | Authentic 1950s historic vintage reconstructions |
For procurement officers and manufacturing directors, navigating the supply ecosystem requires anticipating regulatory shifts, automated assembly constraints, and the rising consumer demand for vintage authenticity.
Global brands are shifting from procuring bare scratchplates to completely drop-in loaded pickguards. Pre-installing calibrated potentiometers, multi-contact toggle switches, and pickups saves up to 42 minutes per guitar on final factory assembly lines.
Strict chemical restrictions in the European Union and North America are eliminating legacy nitrocellulose formulations containing toxic phthalate plasticizers. Procurement demands are surging for biodegradable polylactic acid (PLA) and eco-friendly cellulosics.

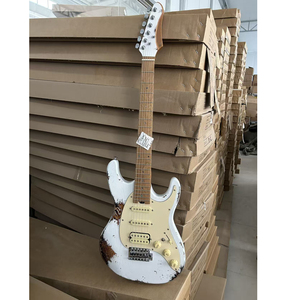

Demand for vintage patina—such as mint green, parchment yellowing, distressed bevels, and micro-lacquer checking—no longer relies on random manual scraping. Factory-controlled UV chamber exposure guarantees uniform, non-brittle vintage aging.
Digital nesting software coupled with optical camera CNC positioning optimizes raw plastic panel yield by over 28%. This drastically reduces material scrap overhead and stabilizes per-unit FOB container contract pricing amid volatile polymer resin markets.
Building on a foundation established in Nagoya, Japan in 1956, our industrial infrastructure combines decades of lutherie wisdom with modernized high-throughput CNC manufacturing capabilities.
Founded in 1956 by Shiro Arai, our operations have evolved alongside the world's most demanding players and builders. From the historic Aria Pro II PE and SB series to today's high-spec OEM lines, our quality control procedures are directed by veteran Japanese instrument inspectors.

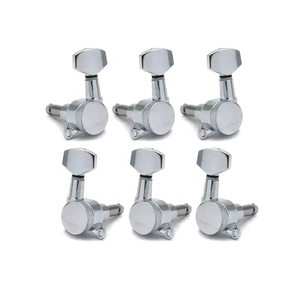

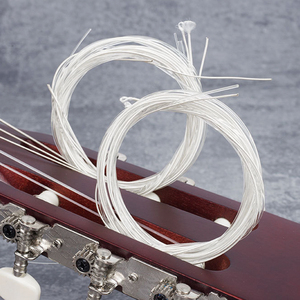

As the trusted international export representative for legendary GOTOH precision components, Augustine classical strings, and Pignose amplification systems, we offer holistic B2B consolidation. OEM clients source matched pickguards, locking machine heads, and calibrated pickups in unified shipments.
Unlike rigid assembly facilities, our toolrooms retain dedicated CNC fixture profiles for true left-handed electrics, multi-scale extended range guitars, and archtop jazz scratchplates with integrated floating pickup brackets, ensuring no segment of your catalog is underserved.
Key technical specifications, minimum order constraints, tooling lead times, and customization protocols for musical instrument brands and distribution networks.
.DXF, .DWG, .STEP, and .IGES. If digital drawings are unavailable, our metrology department can perform high-precision optical CMM bed scanning on physical vintage or production sample plates to generate exact 1:1 CAD blueprints with screw hole center tolerances maintained within ±0.05mm.
Whether you need custom-beveled scratchplates, precision-routed pickguard blanks, or complete drop-in pre-wired electronics assemblies, our team delivers consistent Japanese-standard manufacturing excellence directly to your facility.
